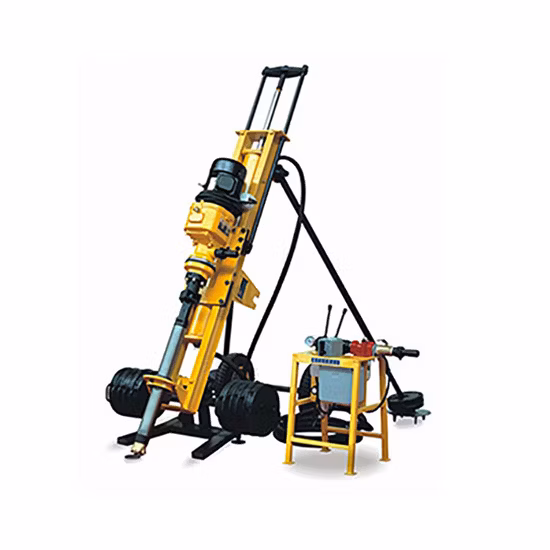

Electric Underground DTH Drill Rig

Basic Info

Model NO.	YGD70/100
Product Name	Electric Underground DTH Drill Rig
Application	Drill Hole
Motor Power	3kw
Weight	280kg
Drilling Direction	Horizontal and Vertical
Air Consumption	4m3/Min
Dimension	1740*260*420mm
Drilling Rod Od	42mm
Rated Speed	1440r/Min
Working Air Pressure	0.5-0.7MPa
Transport Package	Wooden Case
Specification	2CBM
Trademark	YUGONG
Origin	China
Production Capacity	800 Sets/Month

Product Description

Electric underground dth drill rig

Brief introduction

DTH Drilling Rig is mainly used to drill rocks, stones, floor, etc. in mining and road construction, water conservancy, national defense and other projects. It can work well in rugged terrain. It's your necessary and ideal machine in drilling work.

Technical parameter

Model	YGD70	YGD100	YGQ100
Drilling depth	15m	>=25m	>=25m
Drilling diameter	50-90	90-130mm	90-130mm
Working air pressure	0.5-0.7mpa	0.5-1.0mpa	0.5-1.0mpa
Air consumption	4m3/min	6m3/min	12m3/min
Max propelled force	3600n	9600n	9600n
Motor power	3kw	4kw
Rated speed	1440r/min	1440r/min	3200r/min
Drilling rod OD	42mm	50-60mm	50-60mm
Dimension	1740*260*420mm	2280*440*550mm	2230*380*550mm
Weight	280kg	470kg	450kg

Main features

1. It can drill both horizontal and vertical.

2. High Efficiency and Stable Performance.

3. Low Noise and High Speed Drilling while Working.

4. Easy to Install and Disassemble in Working Sites.

5. Small and Light, suitable to drill in all kinds of environments.

Product Overviews

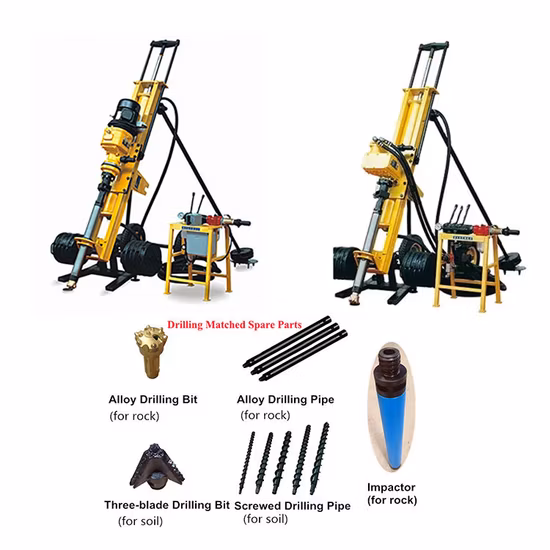

Spare parts (Drilling pipes and drilling bit)

On site working

Package and shipping

FAQ

Q1: How long is your delivery time?A1: It is according to the model and quantity. Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you want to customize the machines.

Q2: Do you provide samples? Is it free or extra?A2: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.

Q3: What is your terms of payment?A3: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc. 30% T/T in advance, balance before shipment.
