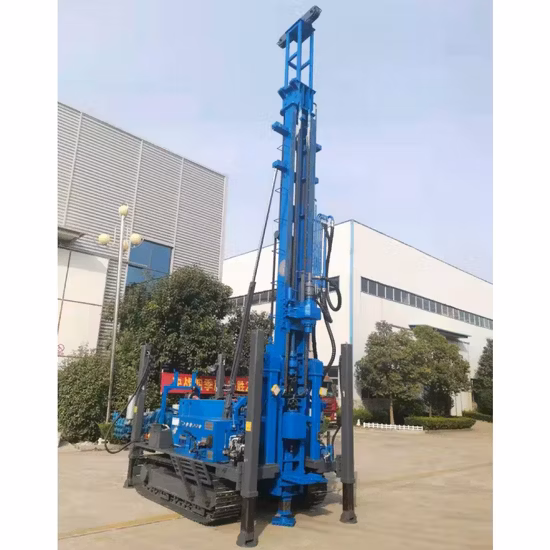

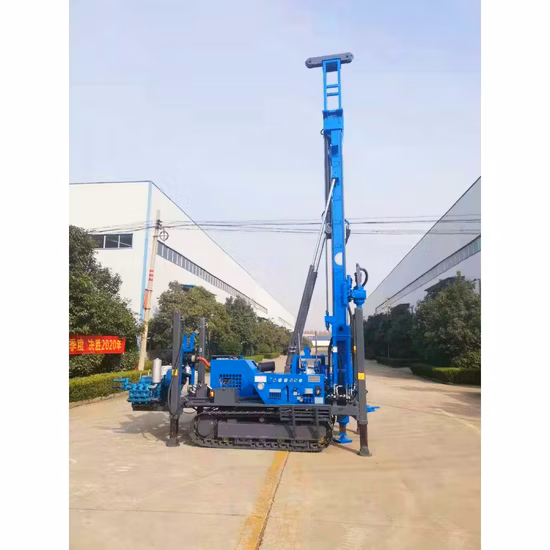

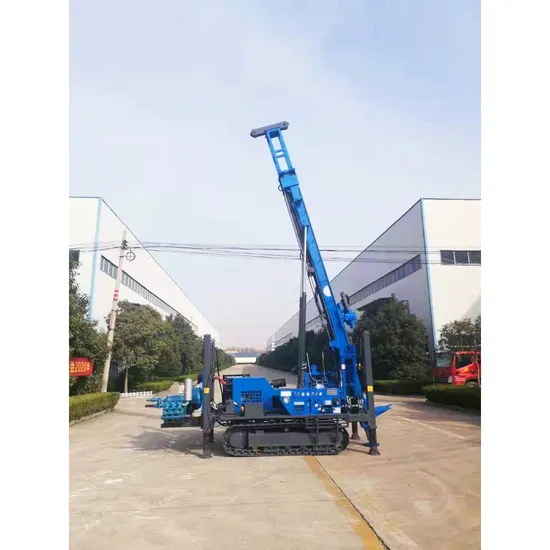

MWDL-350 mechanical top drive drilling rig is a kind of drilling equipment independently developed by the company that c

MWDL-350 mechanical top drive drilling rig is a kind of drilling equipment independently developed by the company

that can drill at 75-90°,integrates water drilling and gas drilling functions (national invention patent: ZL201510479602.4),

using 5-speed manual hemp, more Wide range,sensitive and flexible conversion of positive energy, twice as much as

hydraulic transmission, lower power drive, more efficient and energy-saving.The low-light problem of ring drilling rigs for

beads and pebble layers.

Drilling capacity	Drilling depth for water well	350m(152mm~203mm)
	Sample drilling 75mm Wireline coring N size	800m
	Borehole (Drill bit) dia.	Ø75~Ø350mm
	Drilling angle350m(152mm~203mm)	75-90°
Drive head	Lifting capacity	240kN
	Thrusting capacity	180kN
	Rotary speed RPM	Forward:27,51,93,129,156,193,247,437,737,901r/min
	Rotary speed RPM	Reverse:48,219 r/min
	Max. Torque	10500N.m
Power Unit	Engine Model	YN33GBZ
Power Unit	Rated power/speed	65kW/ 2400r/min
Mechanical winch capacity		7.5Ton
Drill pipe	Drill pipe dia.	Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ
Drill pipe	Drill pipe length	3000mm
Mud pump		BW160/ BW200/ BW250
Air compressor	Air consumption	16~35m3/min
Air compressor	Air pressure	10.5~24.6bar
Crawler chassis	Walking speed	0~2 km/h
Crawler chassis	Climbing angle	Max. 25°~30°
Dimension	Transport	630020002600mm
Dimension	Working	780024003800mm
Weight with steel crawler		7500kg
