Jcdrill Exploration RC Drill Rigs Reverse Circulation Drilling Rigs by Crawler

Basic Info

Model NO.	JRC300
Drilling Way	Rotary
Type	Crawler
Drilling Rig Type	Crawler Mounted Drilling Rig
Transport Package	Standrad Export Packing
Specification	7550*2260*2700 mm
Trademark	JCDRILL
Origin	China
HS Code	8430419000
Production Capacity	2000sets/Year

Product Description

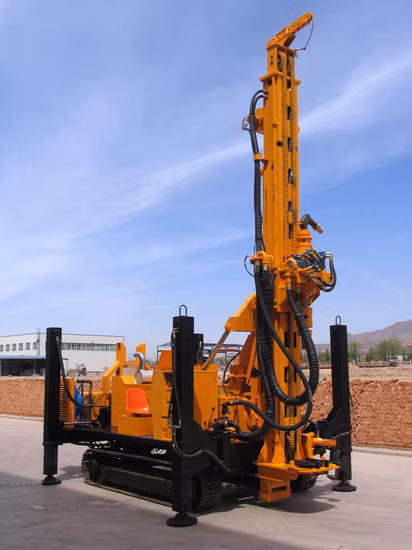

JRC300 Reverse Circulation(RC) Drilling RigJRC300 reverse circulation drilling rig is a new multi-purpose, high-efficiency, environmental protection, multi-track-type rig, which uses the latest foreign gas lift reverse circulation drilling technology, rock dust can be effectively collected through a dust collector to avoid environmental pollution.You can also collect slagging cyclone separator can be used in geological prospecting department of sampling analysis.It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment. The drilling rig can be used in a variety of compressed air on the ground hole reverse circulation drilling. The lifting system,guide compensation, drill pipe loading and unloading, rotation and feed, legs, winch, walking and other system to achieve all of the hydraulic system to significantly reduce the labor intensity and improve the efficiency and quality of construction .Specification

1	Geology drilled		All kinds
2	Drilling Type		DTH & RC
3	Drill system and operation		Hydraulic
4	Max.Hole Diameter	mm	Φ105-Φ350
5	Max.Hole Depth	m	300
6	Rotation Torque	N.M	8500
7	Rotation Speed(Forward rotation)	rpm	0-40 1st Gear
			0-80 2nd Ger
8	Rotation Speed(Revise rotation)	rpm	40 1st Gear
			80 2nd Ger
9	DTH Drill pipe diameter	mm	76/89/102/114/127
10	RC Drill pipe diameter	mm	102/114/127
11	Drill pipe length	mm	3000
12	Max. Feed Speed	M/min	5-30
13	Max. Lifting Speed	M/min	5-18
14	Feed Stroke	mm	3400
15	Max. Lifting force	T	12
16	Lifting force of Main winch(Optional)	T	4
17	Lifting force of tool winch	T	1.5
18	Lifting height of tool winch	m	7.5
19	Diesel Engine type	CUMMINS
20	Rated Horse power	Kw	112
21	Electrical System	Volt	24
22	Type		Open
23	Diameter	mm	300
24	Clamping Force	KN	157
25	Clamping Rod Diameter	mm	76-219
26	Net Weight	T	13
27	Shipping Length	mm	7550
28	Shipping Width	mm	2260
29	Shipping Height	mm	2700
30	Hydraulic Leg Feed Stroke	mm	600
31	Gradeability	°	21
32	Ground Clearance	mm	300
33	Volume of Flow	mm	200

Application Characteristics 1.Diesel engine mounted hydraulic system, all the system include the walking, rotation, feed, lifting, Leg, lifting, compensation system, rod change is hydraulic.2:Reverse circulation system working together with DTH technology, air compressor provide pressed air for impact and dust collect.3.During working, use the reverse circulation hammer, double tube, pressed air enter between two tube and dust out from the inner tube.4.Also it's available to positive circulation use normal drilling tool.5.The working system composed of feed system, guide(mast),rotary head, compensation system, centralizer, rod exchange system, winding and so on.6.Axes pressure, feed speed, rotary speed is adjustable.Packing& Delivery

Service In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
